Small Neodymium Magnets
Description
12 Years' Professional Rare Earth Magnet Manufacturer
Materials Selection
Different kinds of magnetic materials can be selected, such as SmCo, NeFeB, Ferrite and various kinds of super-hard materials such as gemstones, crystals, ceramics, etc.
Disc Small Magnets (SIZES AND TOLERANCES)
| Item | External Diameter. mm | Height. mm | Pointedness R&C |
| Size Range | Min:0.2 Max:2.0 | Min:0.2 Max:15 | According to your requirements |
| Limits of Deviation | ±0.005 - ±0.02 | ±0.005 - ±0.02 | R±0.01 |
Ring Small Magnets (SIZES AND TOLERANCES)
| Item | External Diameter. mm | Internal Diameter. mm | Height. mm | Magnetization |
| Basic Size | Min:0.8 Max:10.0 | Min:0.2 Max:3.0 | >Min:0.2 Max:15 | According to your requirements |
| Limits of Deviation | ±0.005 - ±0.05 | ±0.01 - ±0.1 | ±0.005 - ±0.05 | ±1° |

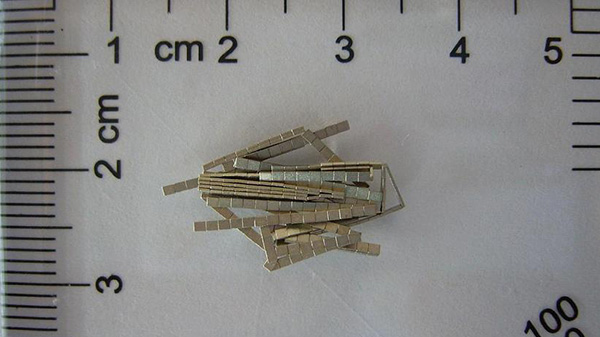

Block Small Magnets (SIZES AND TOLERANCES)
| Item | Length. mm | Width. mm | Height. mm | Verticality |
| Size Range | Min:0.5 Max:3.0 | Min:0.5 Max:3.0 | Min:0.5 Max:3.0 | According to your requirements |
| Limits of Deviation | ±0.005 - ±0.02 | ±0.005 - ±0.02 | ±0.005 - ±0.02 | ±0.5° |
Please contact us for more information or to discuss your specific magnet needs.
