Ferrite Pot Magnet with Threaded Magnets
Description
12 Years' Professional Rare Earth Magnet Manufacturer

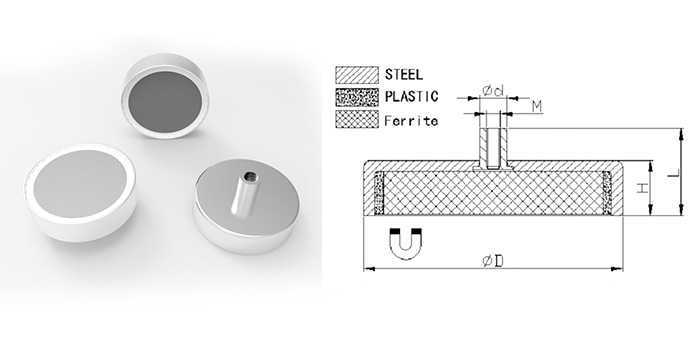

Ferrite pot magnet with threaded bush Disc ferrite magnet embedded to steel cup. The steel cup increases the adhesive force of the magnet on direct contact with a thick iron surface.
| Part no. | D | H | L | d | M | Pull force | weight | ||
| mm | mm | mm | mm | N | Lbs | KG | g | ||
| TCMFE10F | 10 | 4.5 | 11.5 | 6 | M3 | 4 | 0.9 | 0.4 | 3 |
| TCMFE16F | 16 | 4.5 | 11.5 | 6 | M3 | 18 | 4.0 | 1.8 | 7 |
| TCMFE20F | 20 | 6 | 13 | 6 | M3 | 30 | 6.7 | 3.1 | 14 |
| TCMFE25F | 25 | 7 | 15 | 8 | M4 | 40 | 9.0 | 4.1 | 21 |
| TCMFE32F | 32 | 7 | 15 | 8 | M4 | 80 | 18.0 | 8.2 | 33 |
| TCMFE36F | 36 | 7.7 | 16 | 8 | M4 | 100 | 22.5 | 10.2 | 44 |
| TCMFE40F | 40 | 8 | 18 | 10 | M5 | 125 | 28.1 | 12.8 | 59 |
| TCMFE47F | 47 | 9 | 17 | 8 | M4 | 180 | 40.5 | 18.4 | 85 |
| TCMFE50F | 50 | 10 | 22 | 12 | M6 | 220 | 49.5 | 22.4 | 111 |
| TCMFE57F | 57 | 10.5 | 18.5 | 8 | M4 | 280 | 62.9 | 28.6 | 149 |
| TCMFE63F | 63 | 14 | 30 | 8 | M4 | 350 | 78.7 | 35.7 | 247 |
| TCMFE80F | 80 | 18 | 34 | 20 | M10 | 600 | 134.9 | 61.2 | 498 |
| TCMFE100F | 100 | 22 | 43 | 22 | M12 | 900 | 202.3 | 91.8 | 956 |
