Round Magnets with Holes #3 Screw
Description
12 Years' Professional Rare Earth Magnet Manufacturer

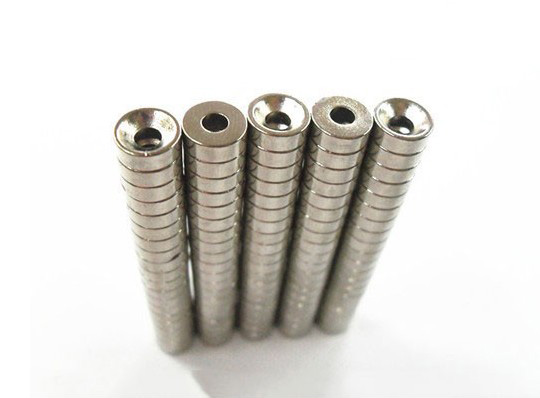

Here we offer the popular size of 8 x 3 mm with holes for one #3 flathead screws to allow for easy fastening. The magnet is magnetized with the south pole on the countersink side. These countersunk block magnets can be used for a wide range of applications including door closures and tool hangers.
- Material:NdFeB
- Shape: Disc
- Dimensions :8mm x 3mm
- Tolerance:± 0,1 mm
- Magnetization: thru 3 mm
- Coating: Nickel-plated (Ni-Cu-Ni)
- Grade: N52
- Max. working temperature:80°C
Technical specifications for magnetization grade N52
| Material | Remanence | Coercivity | Energy product | Maximum temperature | |||||
| Br | bHc | iHc | (BxH)max | ||||||
| kG | T | kOe | kA/m | kOe | kA/m | MGOe | kJ/m 3 | °C | |
| N52 | 14.2-14.7 | 1.42-1.47 | 10.8-12.5 | 860-995 | ≥ 12 | ≥ 955 | 48-53 | 380-422 | ≤ 80 |
