Neodymiun Magnet with Double Countersunk Hole #4 screw
Description
12 Years' Professional Rare Earth Magnet Manufacturer

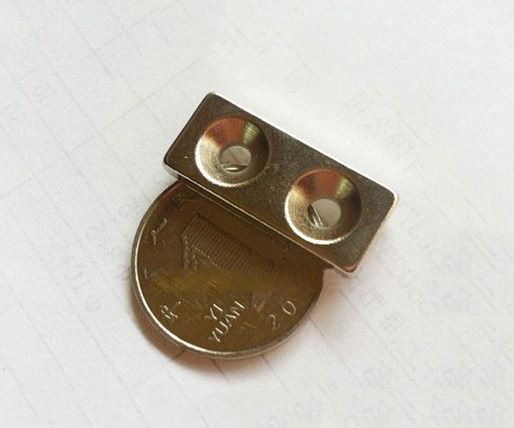

Here we offer the popular size of 28 x 12 x 4 mm with holes for two #4 flathead screws to allow for easy fastening. The magnet is magnetized with the south pole on the countersink side. These countersunk block magnets can be used for a wide range of applications including door closures and tool hangers.
- Material: NdFeB
- Shape: Block
- Dimensions: 28mm x 12mm x 4mm
- Tolerance: ± 0,1 mm
- Magnetization: thru 4 mm
- Coating: Nickel-plated (Ni-Cu-Ni)
- Grade: N42
- Max. working temperature: 80°C
Technical specifications for magnetization grade N42
| Material | Remanence | Coercivity | Energy product | Maximum temperature | |||||
| Br | bHc | iHc | (BxH)max | ||||||
| kG | T | kOe | kA/m | kOe | kA/m | MGOe | kJ/m 3 | °C | |
| N42 | 12.9-13.2 | 1.29-1.32 | 10.8-12.0 | 860-955 | ≥ 12 | ≥ 955 | 40-42 | 318-334 | ≤ 80 |
