Countersunk Hole Neodymiun Magnet for #4 Screw
Description
12 Years' Professional Rare Earth Magnet Manufacturer

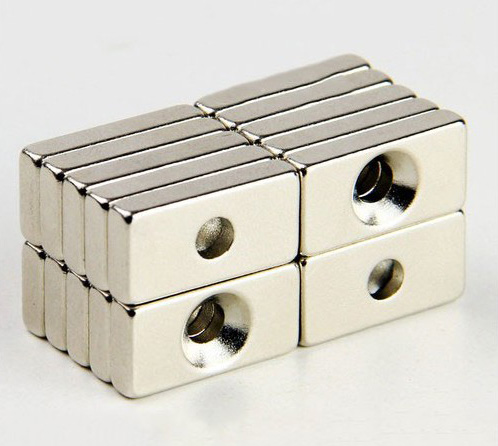

Here we offer the popular size of 20 x 10 x 4 mm with holes for one #4 flathead screws to allow for easy fastening. The magnet is magnetized with the south pole on the countersink side. These countersunk block magnets can be used for a wide range of applications including door closures and tool hangers.
- Material: NdFeB
- Shape: Block
- Dimensions: 20mm x 10mm x 4mm
- Tolerance: ± 0,1 mm
- Magnetization: thru 4 mm
- Coating:Nickel-plated (Ni-Cu-Ni)
- Grade:N35
- Max. working temperature:80°C
Technical specifications for magnetization grade N35
| Material | Remanence | Coercivity | Energy product | Maximum temperature | |||||
| Br | bHc | iHc | (BxH)max | ||||||
| kG | T | kOe | kA/m | kOe | kA/m | MGOe | kJ/m3 | °C | |
| N35 | 11.7-12.1 | 1.17-1.21 | 10.8-11.5 | 860-915 | ≥ 12 | ≥ 955 | 33-35 | 263-279 | ≤ 80 |
